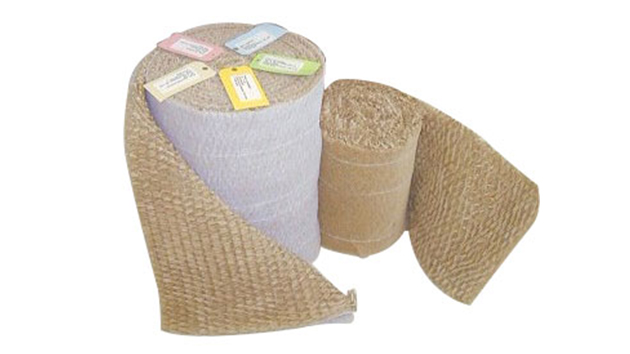

Columbus Paint Stop Filters

Presentation:

COLUMBUS paint stop filters are designed to reduce overspray. “Overspray” is sprayed paint that is not applied to an intended surface.

These filters are composed of different layers of paper with a gradually decreasing weave size, and can retain 10–15 kg of dry paint before becoming clogged.

The multilayer paint filter can be used in any type of painting environment, from automotive paint booths to complex painting systems.

The product complies with EN 12215 regulating hazardous areas of spray booths. The Columbus filters are flame-retardant and therefore prevent the spread of fire.

Columbus HC

• Composition: 8 layers of flame-retardant Kraft paper
• Maximum operating temperature: 80 °C
• Gravimetric arrestance: 94–98%
• Dust accumulation capacity: 3000–18,800 g/m²
• Washable: no
• Size: 1 metre x 10 ml

Columbus HC2

• Composition: 8 layers of flame-retardant Kraft paper, synthetic
• Maximum operating temperature: 80 °C
• Gravimetric arrestance: 99.5%
• Dust accumulation capacity: 16,000 g/m²
• Washable: no
• Size: 1 metre x 10 ml
